Insertion-type design for large and existing pipelines
No moving parts, reliable operation with minimal maintenance
Hot-tap installation possible under low or working pressure
Low pressure loss and low energy consumption
Wide flow velocity range with linear output
Cost-effective solution for medium and large diameter pipelines
Strong anti-interference performance with stable zero point
Multiple output signals for industrial automation systems
The plug-in electromagnetic flowmeter consists of a plug-in electromagnetic flow sensor and a matched electromagnetic flow converter, forming a complete flow measurement system for conductive liquids in pipelines.
Designed based on the principle of electromagnetic induction, this flowmeter is ideal for flow measurement in large and medium diameter pipelines, especially for existing pipe networks. The insertion structure allows easy installation and removal without stopping the process under low or working pressure, significantly reducing installation cost and downtime.
With no moving parts and a full-bore measuring concept, the flowmeter provides stable, accurate, and reliable measurement. Its performance is not affected by changes in temperature, pressure, density, viscosity, or conductivity (above the minimum requirement), making it suitable for a wide range of industrial applications.
Insertion-type electromagnetic flow measurement for conductive liquids
No moving parts for long service life and low maintenance
Installation and removal possible without pipeline shutdown (under pressure)
Measurement accuracy unaffected by fluid temperature, pressure, density, or viscosity
Almost zero pressure loss and low energy consumption
Advanced low-frequency square-wave excitation for stable zero and strong anti-interference capability
Wide and adjustable flow velocity range from 1 m/s to 10 m/s
Linear relationship between flow rate and output signal
Supports current output and frequency output simultaneously

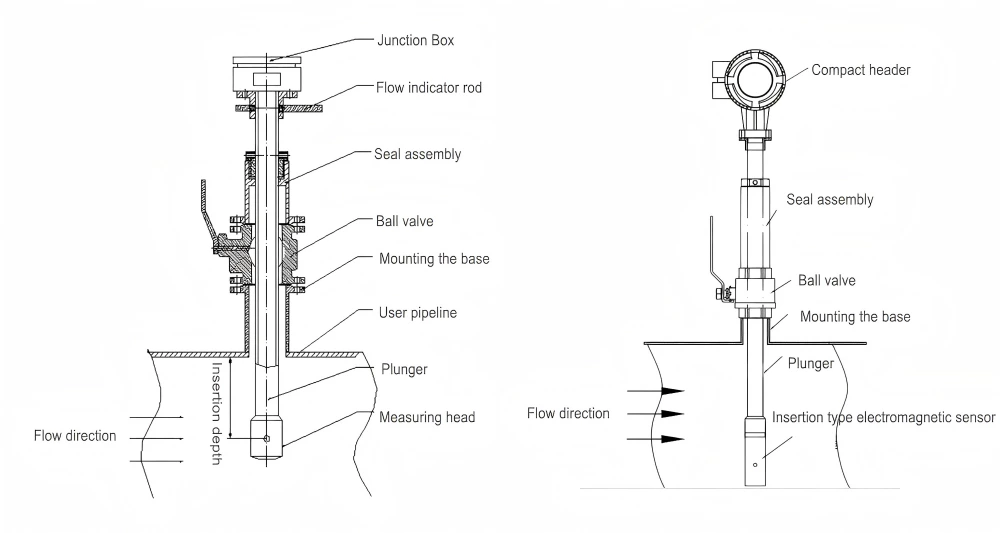

The flowmeter adopts a magnetic insertion structure and is connected to the pipeline via a mounting base, ball valve, compression nut, and positioning screw.
Two sensor structures are available:
Measuring tube type: Suitable for clean liquids
Planar electrode type: Suitable for liquids containing impurities
| Diameter Nominal | DN100 ~ DN3000 |
| Flow Velocity Range | 0~1 to 0~10 m/s (Full scale adjustable from 1~10 m/s) |
| Measurement Accuracy | ±1.5% FS (at full-scale flow rate of 1 m/s) |
| Minimum Conductivity | > 30 μS/cm |
| Max Working Pressure | 1.6 MPa |
| Electrode Materials | Stainless steel (0Cr18Ni12Mo2Ti), Hastelloy C-276, Titanium (Ti), etc. |
| Measuring Tube Material | ABS |
| Max Medium Temperature | 60 °C (ABS) |
| Sensor Protection Class | IP68 |
| Converter Protection Class | IP65 |
| Max Sensor–Converter Distance | 50 m (customizable) |
| Output Signals | 4–20 mA (load 0–750 Ω), Frequency 1–5 kHz |
| Connection Method | Flanged ball valve, Threaded ball valve |
| Straight Pipe Requirement | ≥15D upstream, ≥10D downstream |
| Insertion length | |
| Size | Length |
| DN≤200 | 693mm |
| 400≥DN≥250 | 793mm |
| 1200≥DN＞400 | 893mm |
| 2000≥DN＞1400 | 1093mm |
Water supply and drainage systems
Sewage and wastewater treatment
Chemical and petrochemical industries
Chemical fiber and fertilizer industries
Metallurgy and steel plants
Papermaking and pulp processing
Industrial process automation and flow control
